Biogas-to-Biomethane Conversion Technologies

Raw biogas contains approximately 30-45% of CO2, and some H2S and other compounds that have to be removed prior to utilization as natural gas, CNG or LNG replacement. Removing these components can be performed by several biogas upgrading techniques. Each process has its own advantages and disadvantages, depending on the biogas origin, composition and geographical orientation of the plant. The biogas-to-biomethane conversion technologies taken into account are pressurized water scrubbing (PWS), catalytic absorption/amine wash (CA), pressure swing absorption (PSA), highly selective membrane separation (MS) and cryogenic liquefaction (CL) which are the most common used biogas cleanup techniques.

biogas-biomethane

The Table below shows a comparison of performance for these techniques at 8 bar (grid) injection.

Table:  Comparison of performance for various upgrading techniques (result at 8 bar) (Robert Lems, 2010) , (Lems R., 2012)

  PWS CA PSA MS CL Unit
Produced gas quality*2 98 99 97-99 99 99.5 CH4%
Methane slip 1 0.1-0.2 1-3 0.3-0.5 0.5 %
Electrical use 0.23-0.25 0.15-0.18 0.25 0.21-0.24 0.35 kWh/Nm3 feed
Thermal energy use 0,82-1.3 kWth/Nm3 prod.
Reliability / up time 96 94 94 98 94 %
Turn down ratio 50-100 50-100 85-100 0-100 75-100 %
CAPEX Medium Medium Medium Low High
Operation cost Low Medium Medium Low High
Foot print Large Large Medium Small Large
Maintenance needed Medium Medium+ Medium+ Low High
Ease of operation Medium Medium+ Medium Easy Complex
Consumables &

waste streams

AC*3/Water AC*3/amines AC*3/ absorbents AC*3/None AC*3/None
References Many Many Medium Medium Very few

*2 If no oxygen of nitrogen is present in the raw biogas

*3 Activated carbon (AC) consumption is depending on the presence of certain pollutants (trace components) within the raw biogas.

From the above Table, it can be concluded that the differences between technologies with respect to performance seem to be relatively small. However, some “soft factors” can have a significant impact on technology selection. For example, water scrubber technology is a broadly applied technology. The requirement for clean process water, to make up for discharge and condensation, could be a challenging constraint for remote locations.

Moreover, PWS systems are prone to biological contamination (resulting in clogged packing media and foaming), especially when operated at elevated temperatures. Without additional preventative measures this will result in an increase of operational issues and downtime.

Amine scrubbers are a good choice when surplus heat is available for the regeneration of the washing liquid. The transport and discharge of this washing liquid could however be a burden, as well as the added complexity of operation. With respect to cryogenic Liquefaction (CL) one may conclude that, this technology has a questionable track-record, is highly complex, hard to operate, and should therefore not be selected for small-medium scale applications.

Both PSA and MS provide a “dry” system, both technologies operate without the requirement for a solvent/washing liquid, which significantly simplifies operation and maintenance. Distinctive factor between these technologies is that the membrane based system operates in a continuous mode, while the PSA technology is based on columns filled with absorption materials which operate in a rotating/non-continuous mode.

Moreover, the membrane based system has a more favourable methane slip, energy consumption and turndown ratio. The biggest advantage over PSA however, is that membrane systems do not require any transport of absorbents, its ease of operation and superior up-time.

Main disadvantage of membrane systems are that they are sensitive to pollution by organic compounds, which can decrease efficiency. However, by applying a proper pre-treatment (generally based on activated carbon and condensation) in which these compounds are eliminated, this disadvantage can be relatively easy nullified.

Based on membrane technology, DMT Environmental Technology, developed the Carborex ®MS. A cost-effective plug and play, containerized (and therefore), easy to build in remote locations) biogas upgrading system. The Carborex ®MS membrane system has relatively little mechanical moving components (compared to other upgrading technologies) and therefore, ensures stability of biomethane production, and consequently, the viability of the biogas plant operation.

Moreover, its design for ease of operation and robustness makes this technological platform perfectly suitable for operation at locations with limited experience and expertise on handling of biogas plants.

Impression of a membrane system; Carborex ®MS – by courtesy of DMT

Impression of a membrane system; Carborex ®MS – by courtesy of DMT

Conclusions

Capture of biogas through application of closed ponds or AD’s is not only a necessity for mitigation of greenhouse gas emissions, it is also a method of optimizing liquid waste treatment and methane recovery. Billions of cubic meters of biomethane can be produced on a yearly basis, facilitating a significant reduction of fossil fuel dependency.

Moreover, upgrading of raw biogas-to-biomethane (grid, CNG or LNG quality) provides additional utilization routes that have the extra advantage to be independent of existing infrastructure. To sum up, membrane based technology is the best way forward due to its ease of operation, robustness and the high quality of the end-products.

References

  • Lems R., D. E. (2012). Next generation biogas upgrading using high selective gas separation membranes. 17th European Biosolids Organic Resources Conference. Leeds: Aqua Enviro Technology .
  • Robert Lems, E. D. (2010). Making pressurized water scrubbing the ultimate biogas upgrading technology with the DMT TS-PWS® system. Energy from Biomass and Waste UK . London: EBW-UK .

Co-Authors: H. Dekker and E.H.M. Dirkse (DMT Environmental Technology)

Note: This is the final article in the special series on ‘Sustainable Utilization of POME-based Biomethane’ by Langerak et al of DMT Environmental Technology (Holland). The first two articles can be viewed at these links

http://www.bioenergyconsult.com/biomethane-utilization/

http://www.bioenergyconsult.com/pome-biogas/

Biogas Upgradation Methods

Upgradation of biogas is primarily achieved by carbon dioxide removal which then enhances the energy value of the gas to give longer, driving distances with a fixed gas storage volume. Removal of carbon dioxide also provides a consistent gas quality with respect to energy value. The latter is regarded to be of great importance from the vehicle manufacturers in order to reach low emissions of nitrogen oxide.

biogas-enrichment

At present four different biogas upgradation methods are generally used for removal of carbon dioxide from biogas, either to reach vehicle fuel standard or to reach natural gas quality for injection to the natural gas grid. These methods are:

  • Water absorption
  • Polyethylene glycol absorption
  • Carbon molecular sieves
  • Membrane separation

Water Scrubbing

Water scrubbing is used to remove carbon dioxide but also hydrogen sulphide from biogas since these gases is more soluble in water than methane. The absorption process is purely physical. Usually the biogas is pressurized and fed to the bottom of a packed column where water is fed on the top and so the absorption process is operated counter-currently.

Polyethylene Glycol Scrubbing

Polyethylene glycol scrubbing is a physical absorption process. Selexol is one of the trade names used for a solvent. In this solvent, like in water, both carbon dioxide and hydrogen sulphide are more soluble than methane.

The big difference between water and Selexol is that carbon dioxide and hydrogen sulphide are more soluble in Selexol which results in a lower solvent demand and reduced pumping. In addition, water and halogenated hydrocarbons (contaminants in biogas from landfills) are removed when scrubbing biogas with Selexol.

Carbon Molecular Sieves

Molecular sieves are excellent products to separate specifically a number of different gaseous compounds in biogas. Thereby the molecules are usually loosely adsorbed in the cavities of the carbon sieve but not irreversibly bound. The selectivity of adsorption is achieved by different mesh sizes and/or application of different gas pressures.

When the pressure is released the compounds extracted from the biogas are desorbed. The process is therefore often called “pressure swing adsorption” (PSA). To enrich methane from biogas the molecular sieve is applied which is produced from coke rich in pores in the micrometer range. The pores are then further reduced by cracking of the hydrocarbons. In order to reduce the energy consumption for gas compression, a series of vessels are linked together.

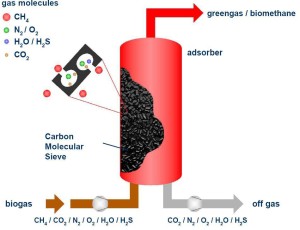

Pressure swing adsoprtion process for biogas upgradation

The gas pressure released from one vessel is subsequently used by the others. Usually four vessels in a row are used filled with molecular sieve which removes at the same time CO2 and water vapour.

Membrane Purification

There are two basic systems of biogas purification with membranes: a high pressure gas separation with gas phases on both sides of the membrane, and a low-pressure gas liquid absorption separation where a liquid absorbs the molecules diffusing through the membrane.

  • High pressure gas separation

Pressurized gas (36 bar) is first cleaned over for example an activated carbon bed to remove (halogenated) hydrocarbons and hydrogen sulphide from the raw gas as well as oil vapour from the compressors. The carbon bed is followed by a particle filter and a heater. The raw gas is upgraded in 3 stages to a clean gas with 96 % methane or more.

The waste gas from the first two stages is recycled and the methane can be recovered. The waste gas from stage 3 (and in part of stage 2) is flared or used in a steam boiler as it still contains 10 to 20 % methane.

  • Gas-liquid absorption membranes

Gas-liquid absorption using membranes is a separation technique which was developed for biogas upgrading in the recent past. The essential element is a micro-porous hydrophobic membrane separating the gaseous from the liquid phase. The molecules from the gas stream, flowing in one direction, which are able to diffuse through the membrane will be absorbed on the other side by the liquid flowing in counter current.

The absorption membranes work at approx. atmospheric pressure (1 bar) which allows low-cost construction. The removal of gaseous components is very efficient. At a temperature of 25 to 35°C the H2S concentration in the raw gas of 2 % is reduced to less than 250 ppm.
